POSYS 904

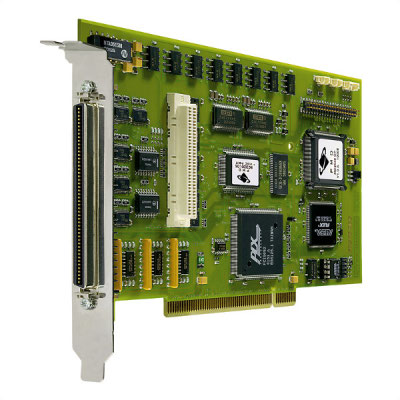

The POSYS 904 (Designed & Made in Germany) is a state-of-the-art 1 to 4 axes PCI-Bus motion controller for brushed/brushless servo motors (external commutation), ±10V analog and PWM command signals, supporting multiple host connection modes and motor types.
Communication
- PCI-Bus
- RS232 / RS485
Supported types of Motors
- brushed servo motors
- brushless servo motors (external commutation)
Motor command signals
- ±10V analog
- PWM sign/magnitude
- PWM 50/50
Principal features
- Update rate: 102,4µs/Axis, 409,6µs/4 Axes
- Encoder input frequency: 5 Mhz
Complies to RoHS specification
