The KANZ series servomotors fit perfectly with Granite Devices Drives, the low voltage versions (48V) with IONI family products and the high voltage versions (220V) with ARGON.

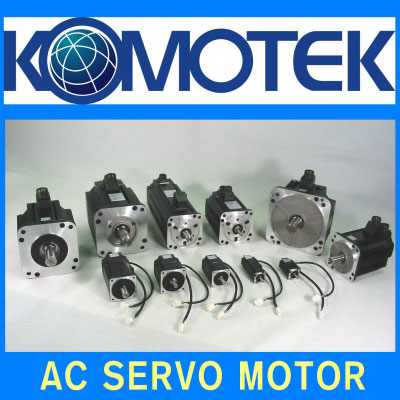

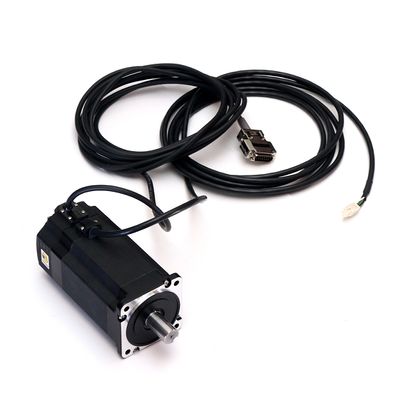

AC servo motor that realizes compactness by adopting high performance neodymium magnet, laser soldering technology, and high density winding technology. KANZ Series can be applied to diverse areas of precision automation machinery such as various industrial robot systems and semiconductor manufacturing equipments.
MOTORS FOR IONI DRIVE SERIES
Motor Model
KANZ-A5DF2N2 - Low Inertia
KANZ-01DF2N2 - Low Inertia
KANZ-02DF12N2 - Low Inertia
KANZ-04DF2N2 - Low Inertia
Frame Size
40 mm
40 mm
60 mm
60 mm
Rated Power
50 W
100 W
200 W
400 W
Voltage
48 V
48 V
48 V
48 V
Rated Speed
3000 Rpm
3000 Rpm
3000 Rpm
3000 Rpm
Feedback
2500P/R inc
2500P/R inc
2500P/R inc
2500P/R inc
MOTORS FOR ARGON DRIVE SERIES
Motor Model
KANZ-A8BF1N2 - Low Inertia
KANZ-02BF1N2 - Low Inertia
KANZ-04BF1N2 - Low Inertia
KANZ-08BF1N2 - Low Inertia
KANZ-10BF1N2 - Low Inertia
Frame Size
40 mm
60 mm
60 mm
80 mm
80 mm
Rated Power
80 W
200 W
400 W
750 W
950 W
Voltage
200/220 V
200/220 V
200/220 V
200/220 V
200/220 V
Rated Speed
3000 Rpm
3000 Rpm
3000 Rpm
3000 Rpm
3000 Rpm
Feedback
2500P/R inc
2500P/R inc
2500P/R inc
2500P/R inc
2500P/R inc
