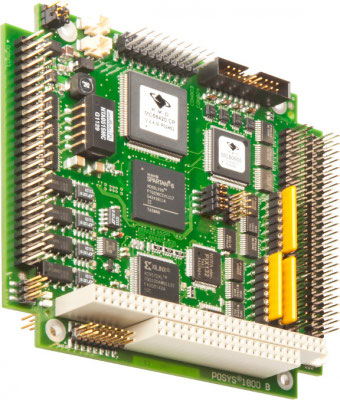

POSYS 1824-B
The POSYS 1824-B (Designed & Made in Germany) is a state-of-the-art 1 to 4 axes PC104-Bus motion controller supporting multiple host connection modes and motor types (brushed servo motors, brushless servo motors, Microstepping motors, Stepping motors). Including FPGA re-programmable.
Communication
- PC104-Bus
- RS232 / RS485
- CAN
Supported Motors
- Servomotors
- Brushless Servomotors
- Microstepping Motors
- Stepping Motors
Command Motor Signals
- ±10V analog
- PWM sign/magnitude
- PWM 50/50
- Pulse & Direction
General Features
- Update rate : 51,2µs/axis, 256µs/4 axis
-
Encoder Input frequency : 8MHz (supports TTL encoder and SSI absolute encoder)
-
8 analog inputs 0-10V/10 bit resolution
- Including FPGA re-programmable
Complies to RoHS specification
