PoScope Mega50

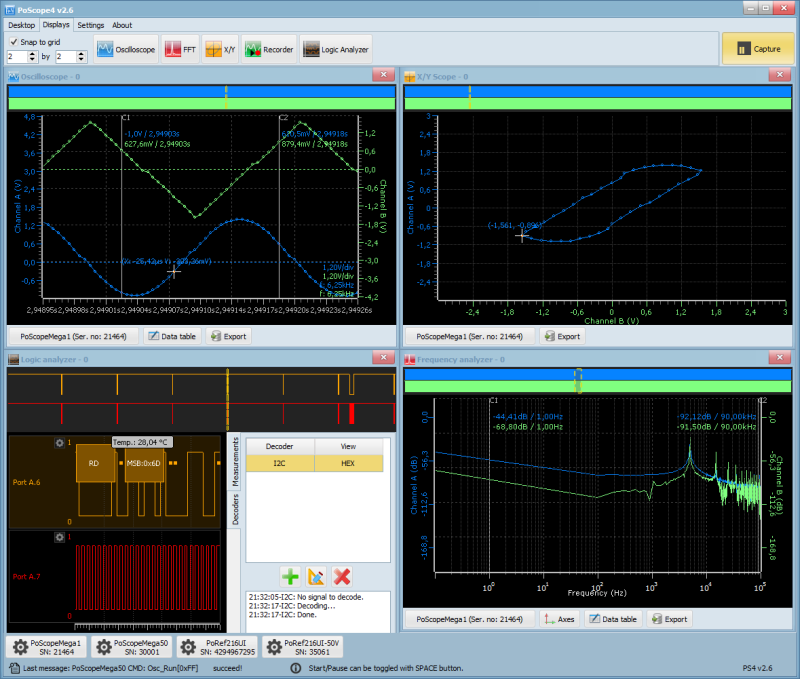

PoScope mega50 is first low cost MSO (mixed signal oscilloscope). It is six-in-one PC-based instrument (USB connection): 2 channel oscilloscope, 2 channel spectrum analyzer, 2 channel recorder, 16-channel logic analyzer with serial interfaces decoding.





Request for Quotation



FEATURES



2 Analog Input

  • Sample rate: up to 48MHz (dual channel)
  • Input voltage: -30 – +30 V
  • ADC resolution: 8 bits
  • Triggering: rising, falling, any
  • Triggering mode: auto, single shoot

2 Digital Ports

  • Sample rate: up to 48MHz (dual port)
  • Configuration: inputs (analyzer), outputs (generator)
  • Input voltage: 0..5V
  • No. of channels: 16 channels
  • *Triggering: Edge, level, pattern
  • Protocol decoder: UART, I2C, SPI, *1-Wire

1 Analog Output

  • Output waveforms: Sine, Square, Saw, Triangle
  • Max. signal frequency: 12,5kHz
  • Max. signal amplitude: 3,3V







Available in BUNDLE version :

  • 1 x PoScope mega 50
  • 2 x PoProbe60
  • 1 x PoProbeL2
  • 1 x USB cable
