PoScope Mega1



PoScope Mega1 is lowest power consumption USB oscilloscope, function generator and logic analyzer in one on the market. It draws only 60mA thus the best choice for measurement environments which demands power autonomy and longevity.





Request for Quotation



FEATURES



2 Analog Input

  • Sample rate: up to 1MHz (dual channel) and up to 2.5MHz (single channel)
  • Input voltage: -20 – +20 V
  • ADC resolution: 12 bits
  • Triggering: rising, falling, any
  • Triggering mode: auto, single shoot

2 Digital Ports

  • Sample rate: up to 1MHz (dual port)
  • Configuration: inputs (analyzer), outputs (generator)
  • Input voltage: 0..5V
  • No. of channels: 16 channels
  • *Triggering: Edge, level, pattern
  • Protocol decoder: UART, I2C, SPI, *1-Wire

1 Analog Output

  • Output waveforms: Sine, Square, Saw, Triangle
  • Max. signal frequency: 12,5kHz
  • Max. signal amplitude: 3,3V

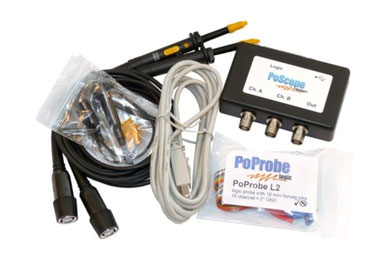

Available in BUNDLE version :

  • 1 x PoScope mega 1
  • 2 x PoProbe60
  • 1 x PoProbeL2
  • 1 x USB cable
