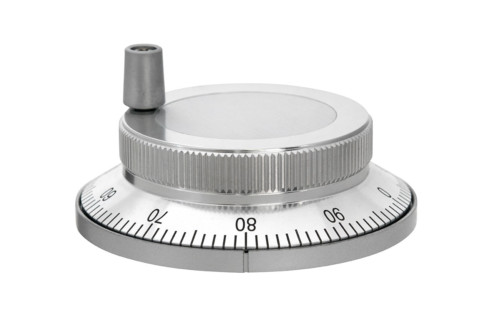

FEATURES

• Quadrature 5 V A and B outputs.
• Requires +5 V DC power supply.
• 100 pulses per revolution with detent per pulse.
• Signals compatible with 5 V and 3.3 V TTL systems. Interface directly with PoKeys, parallel port interface products and other cards.
• Differential Output: the MPG comes with differential output – Terminals A+/A- and B+/B- output differential signals for quadrature signals (if required for the selected application).
• Simple use with PoKeys and Mach with ready configured plugin for Mach.
