IONI PRO SERVO & STEPPER DRIVE

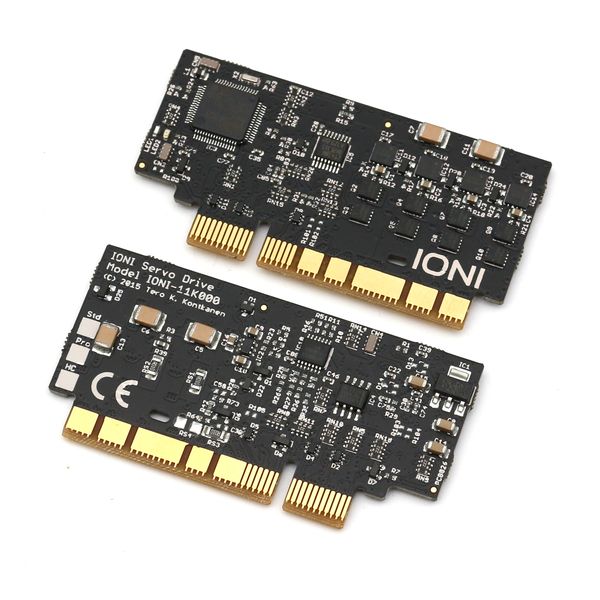

Ioni PRO is a 67x37 mm sized “Swiss knife” of motor control. It drives AC and DC servo motors as well as stepping motors. Possible control methods include position, velocity and torque modes.
It can handle motor up to 500W power.

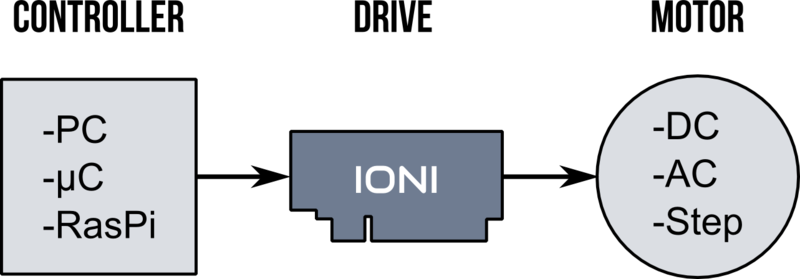

Commands to IONI drive can be delivered in many formats and from many sources, such as PC, PLC, microcontroller (i.e. Arduino, MBED and OEM boards) or embedded computers like Raspberry Pi.
Features
- It can handle motors up to 5-500 W
- Output max current (AC motors/Brushless/Passo-Passo) : 18 A
- Output max current (DC motors) : 30 A
- Output Voltage : 5-52 VDC
- Incremental Encoder and Sin/Cos Encoder support
- Max Encoder count rate : 0-18 MHz
- Homing funciton : yes (all control modes)
Click here for complete features of IONI
Click here for motors compatibles with IONI PRO
Setpoint Signal
- Step & Direction” digital signal
- Analog +/- 10V signal
- PWM signal
- Rs485 serial bus (SimpleMotion V2)
- Ethercat
Compatible Motors
Servomotors
- Permanent magnet brush-DC, AC, brushless or linear motor
- Motor voltage rating 12-60 VDC (IONI supply voltage is 5 – 52 VDC)
-
Motor current rating 0.5 – 18A (IONI PRO maximum output is 18A)
-
Servo motor must be equipped with an incremental encoder (position sensor) with resolution of 100 to 1000000 pulses per revolution.
Stepper motors
- Two-phase stepping motor with 0.5 – 10A current rating, no feedback device needed. Can be used in position and velocity control mode. Torque control mode not possible with stepper.
Motherboard IONICUBE 4x or IONICUBE 1x are recommended for easier cabling and installing.
