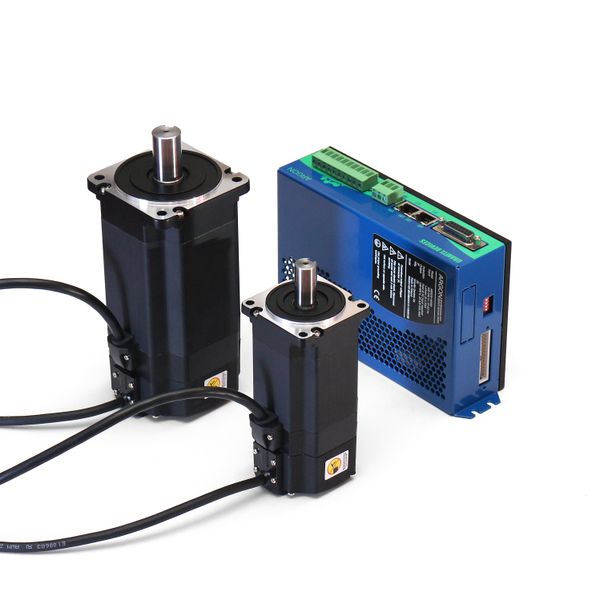

Versatile servo drive ARGON supports virtually any type of industrial servo motor including AC,Brushless DC, Brush DC and Linear motors found in diverse automation applications.
Argon can handle motor up to 1.5 kW power.
Whether the application requires position, velocity or torque operating mode, Argon handles them all out-of-the-box. Built-in motion profiler enables simple point-to-point moves as well as continuos synchronous motion tracking.
Features
- Wide range motor support, from DC, BLDC, AC and Linear, from 50 W to 1500 W
- Input current 110-240 VAC
- Continuos Output current [max] 12A
- Peak Output current [max] 15A
- Motor power supply 85-264 Vac / 45-380 Vdc
- Flexible feedback device port supporting incremental, serial and analog encoders and resolvers
- Internal axis homing function with sensorless hard-stop operating mode
- Dimension 51 x 197 x 127 mm
- Sophisticated dead-time distortion eliminated
- ...Continue.. see Wiki Argon for another infos
Control
- Dual CPU architecture with dedicated open source ARM CPU for user functionality
- Input setpoint signals including pulse and direction, quadrature, analog and PWM
- Ethercat
- SimpleMotion V2
Protection
- 4-way Safe torque off with motor braking
- Prevent machine damage via I²t (motor temperature modelling), blocked motion and tracking error detection
- Industry leading ruggedness: over current, short circuit, over voltage, under voltage and over temperature protections, internally fused, data/communication error detection
- CE compliance (LVD & EMC): EN 61800-5-1:2007 and IEC 61000-6-1:2005
Click here for complete Argon specifications
Flyer ARGON
