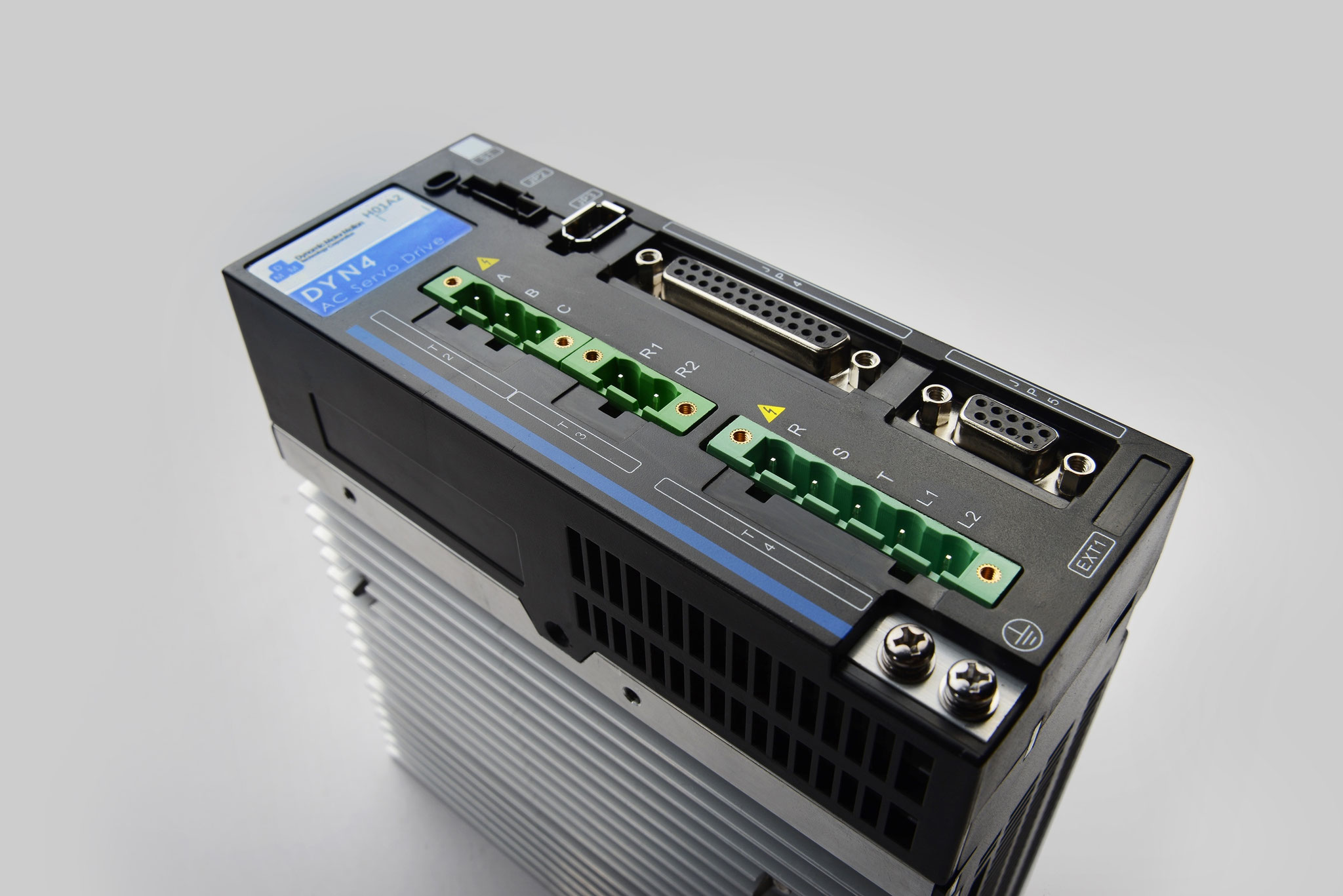

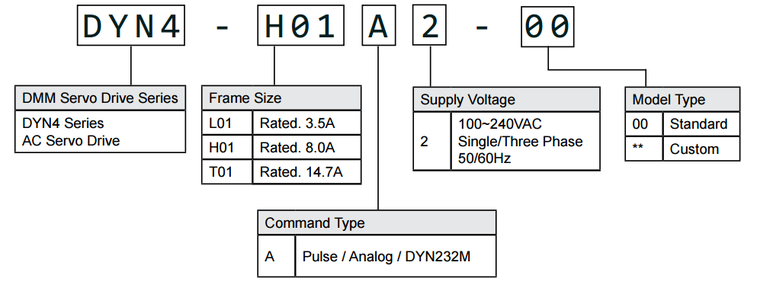

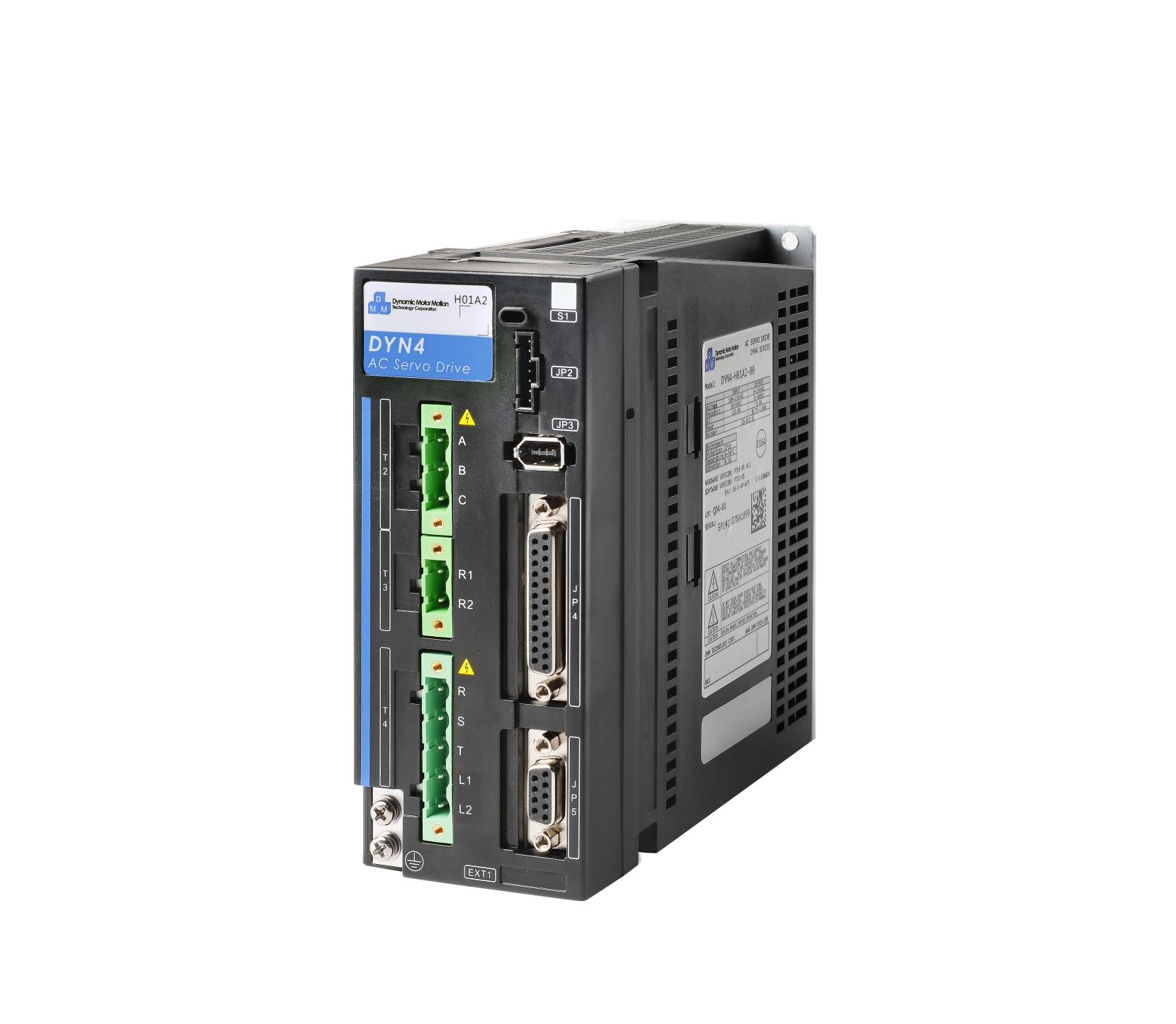

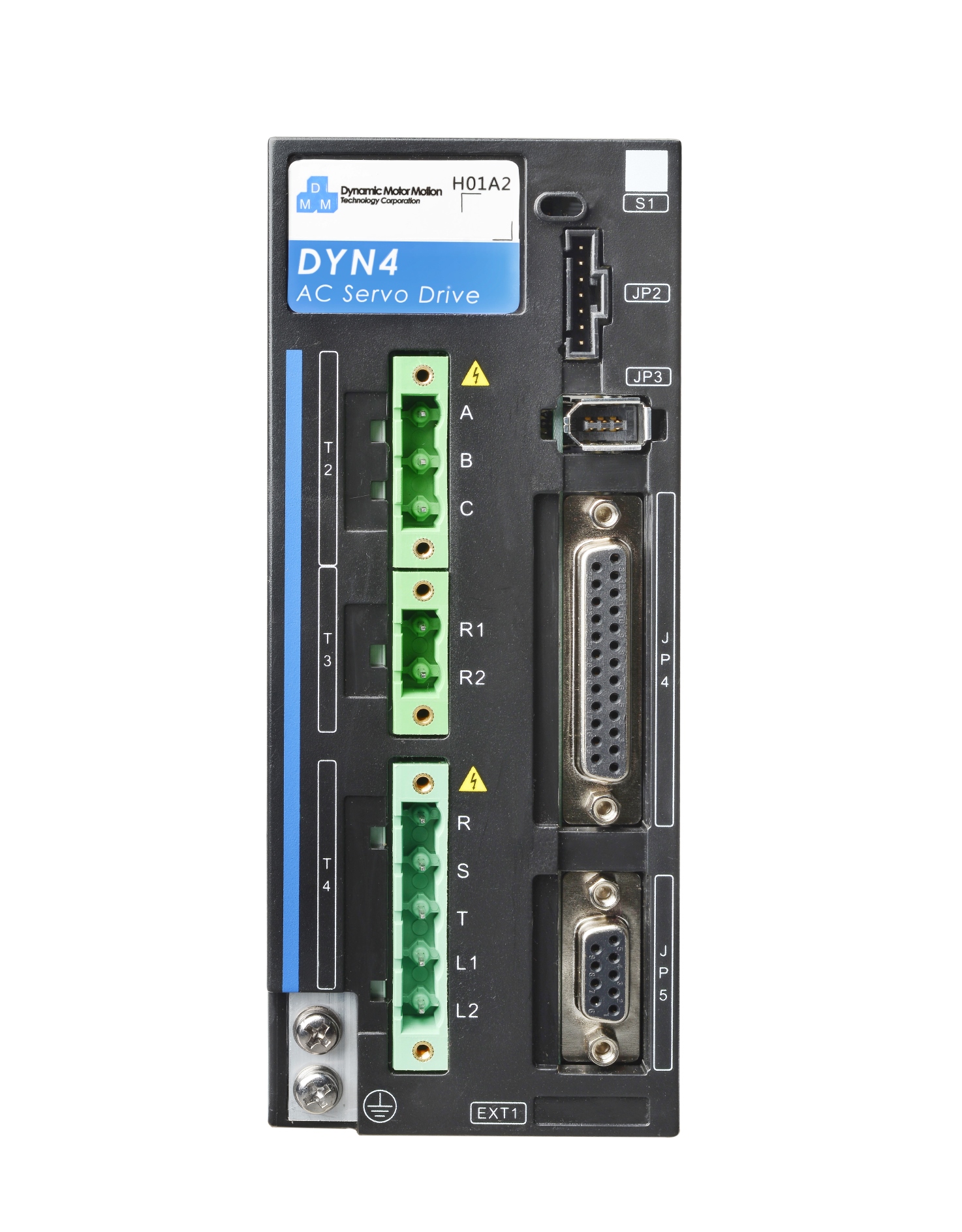

DYN4-T01A2-00 - AC Servo Drive
Combining the latest DMM servo control technology with 16-bit high resolution feedback and brand new monitor functions, the DYN4 AC Servo Drive achieves ultimate accessible performance. Industry standard pulse/analog/serial interface, easy PC set up and low cost makes the DYN4 AC Servo Drive most applicable and suitable for any motion control application.
Features
- Motors range power 1.30-1.80 kW
-
Single/Three-Phase 110~240VAC ± 10% 50/60Hz input
-
Industry standard Position, Velocity, Torque servo modes
-
4-wire high speed serial encoder bus, with 8-bit security code
-
DMMDRV4© graphical interface, Adaptive Tuning Technology
-
Serial [UART,SPI], Pulse/Sign, CW/CCW, A/B Quadrature, and Analog Command
-
A/B/Z Quadrature incremental encoder output
-
Motor Current, Absolute Position, Position Error Monitor Outputs
-
RS485/RS232 networking
-
Integrated Point to Point S-curve motion, linear & circular coordinated motion
Applications
- Machine Tool / CNC
- Factory Automation
- Robotics
- Printing / Packaging

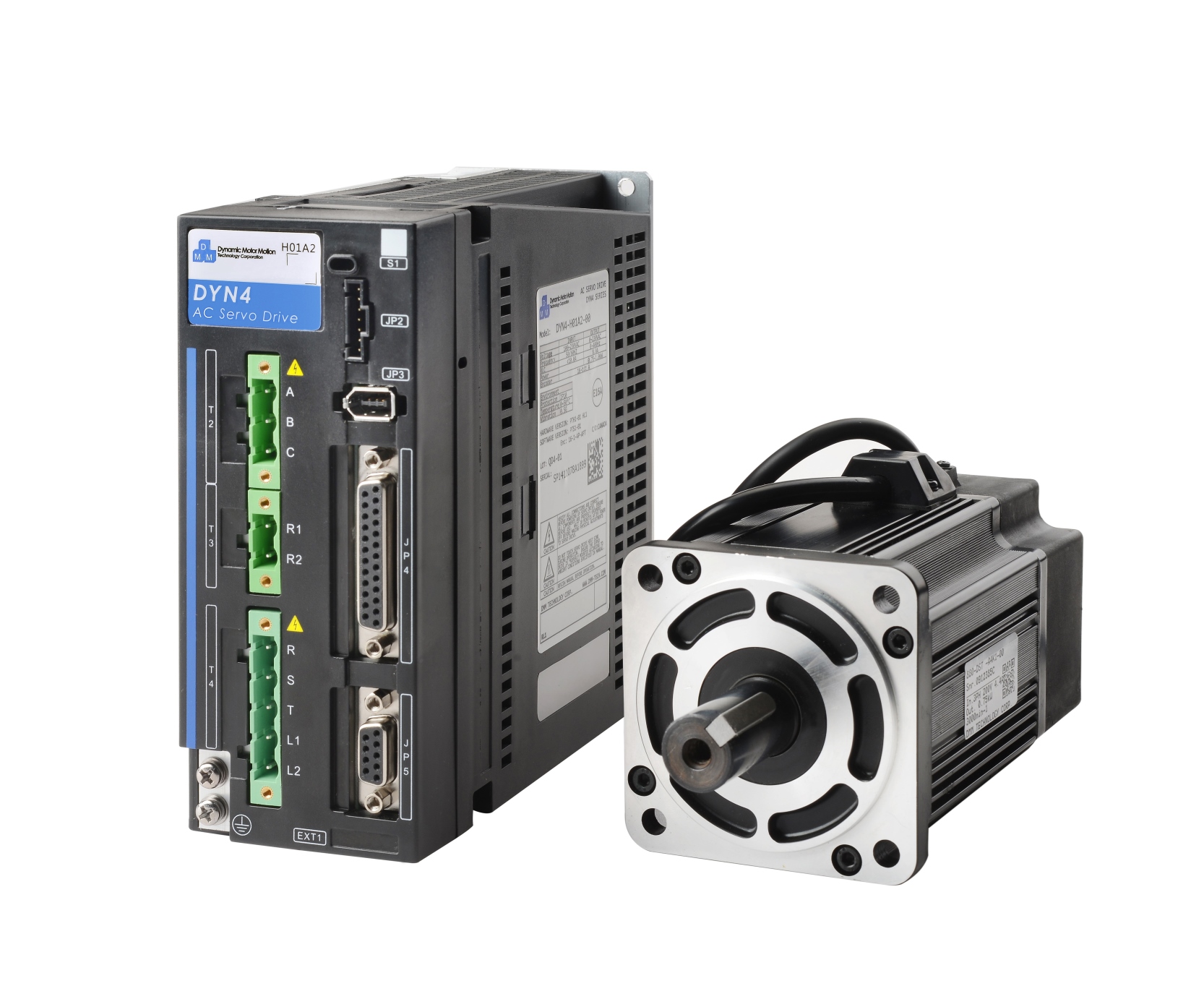

Compatible Motors - Click here
