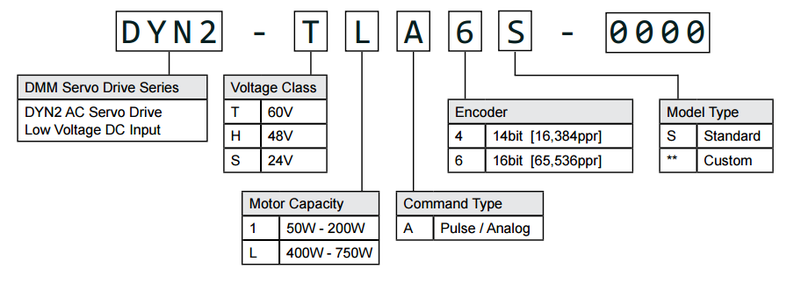

DYN2-TLA6S-00

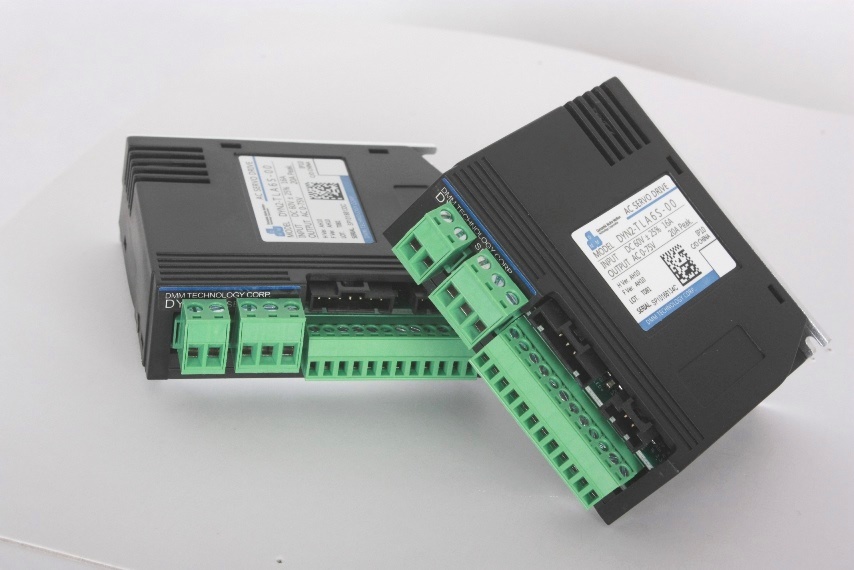

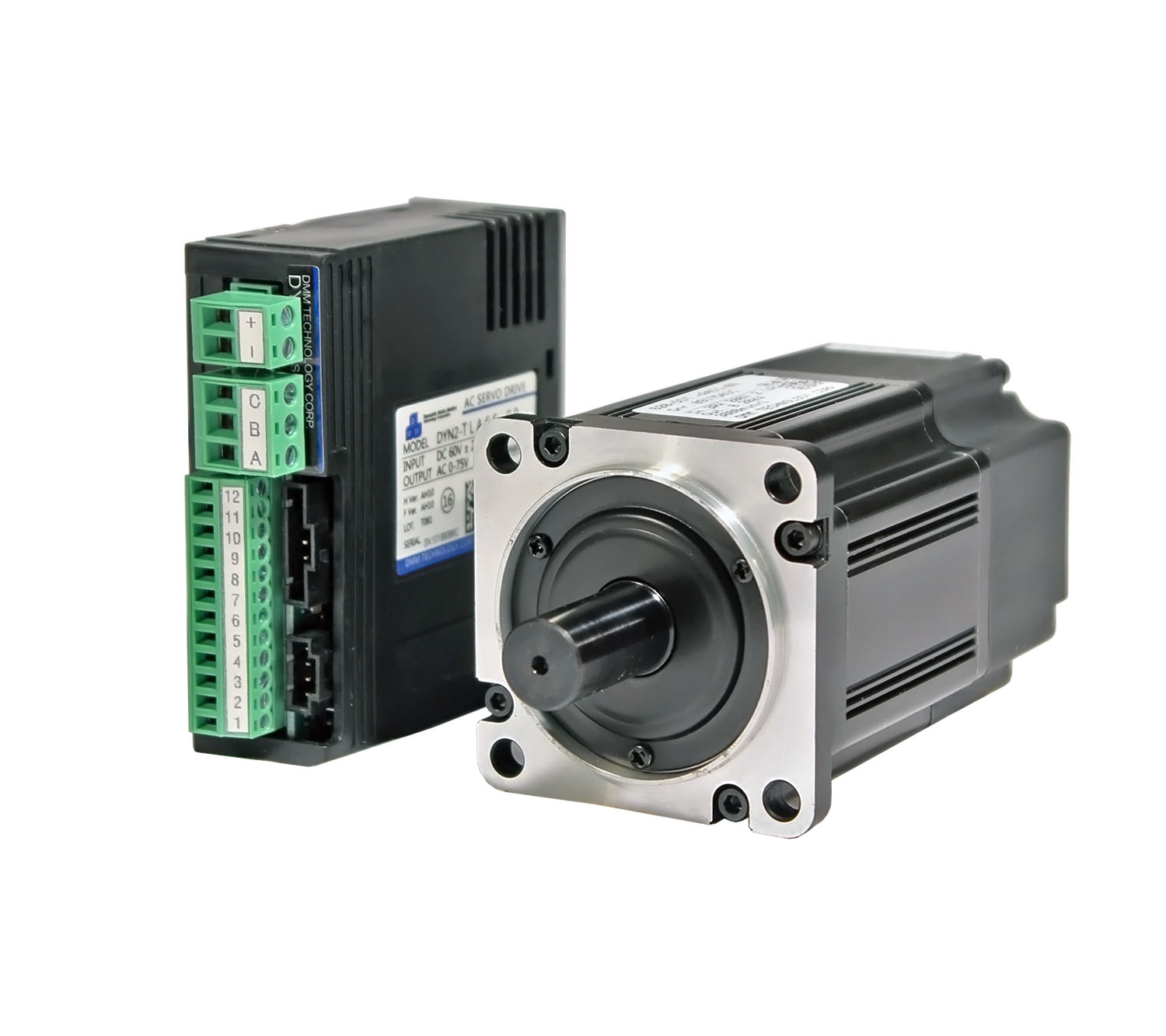

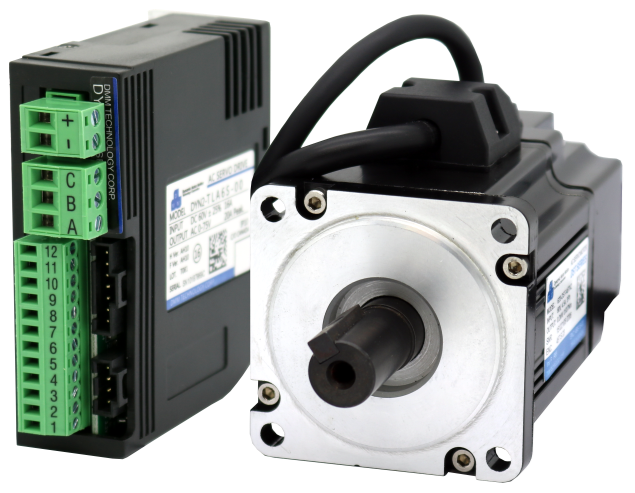

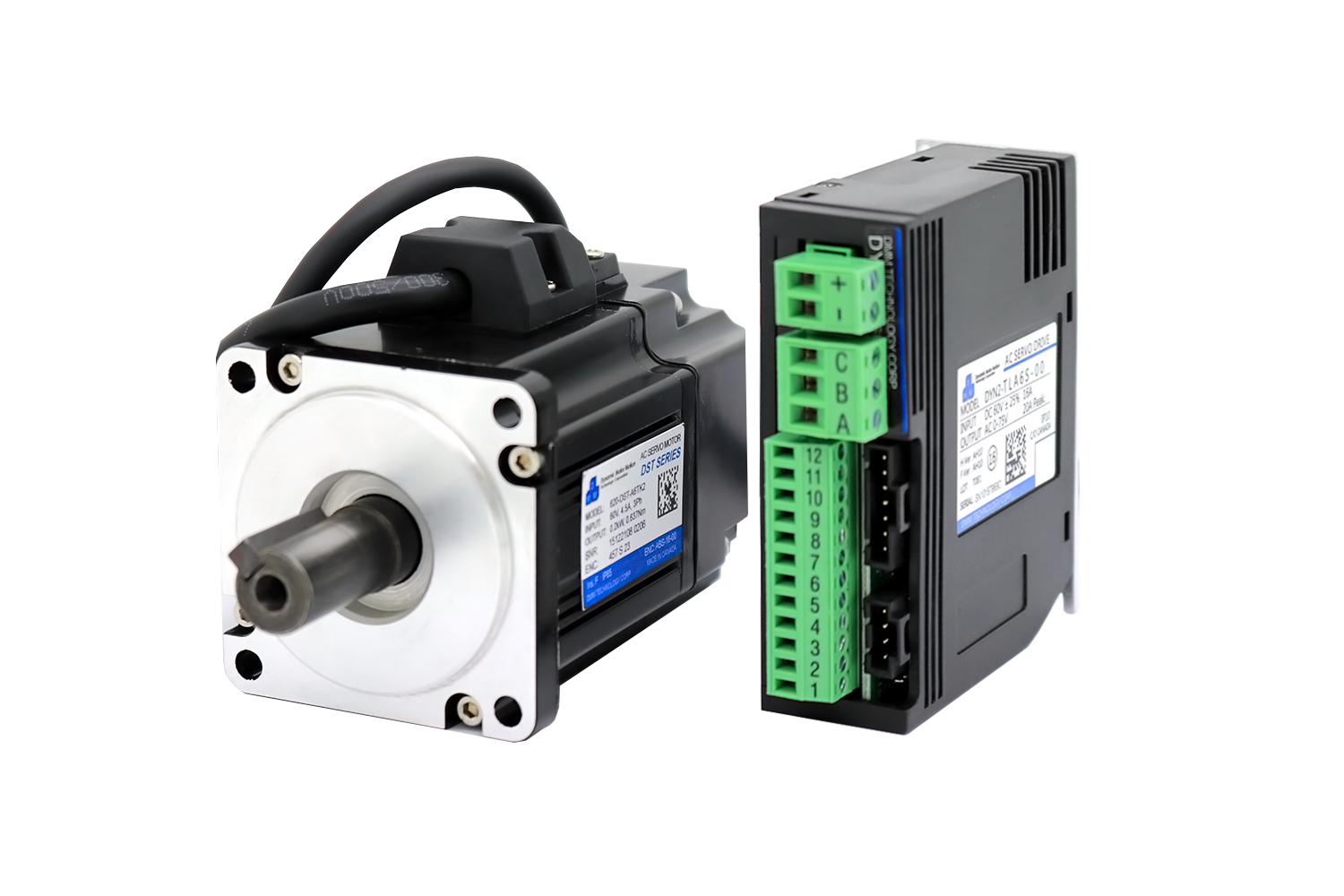

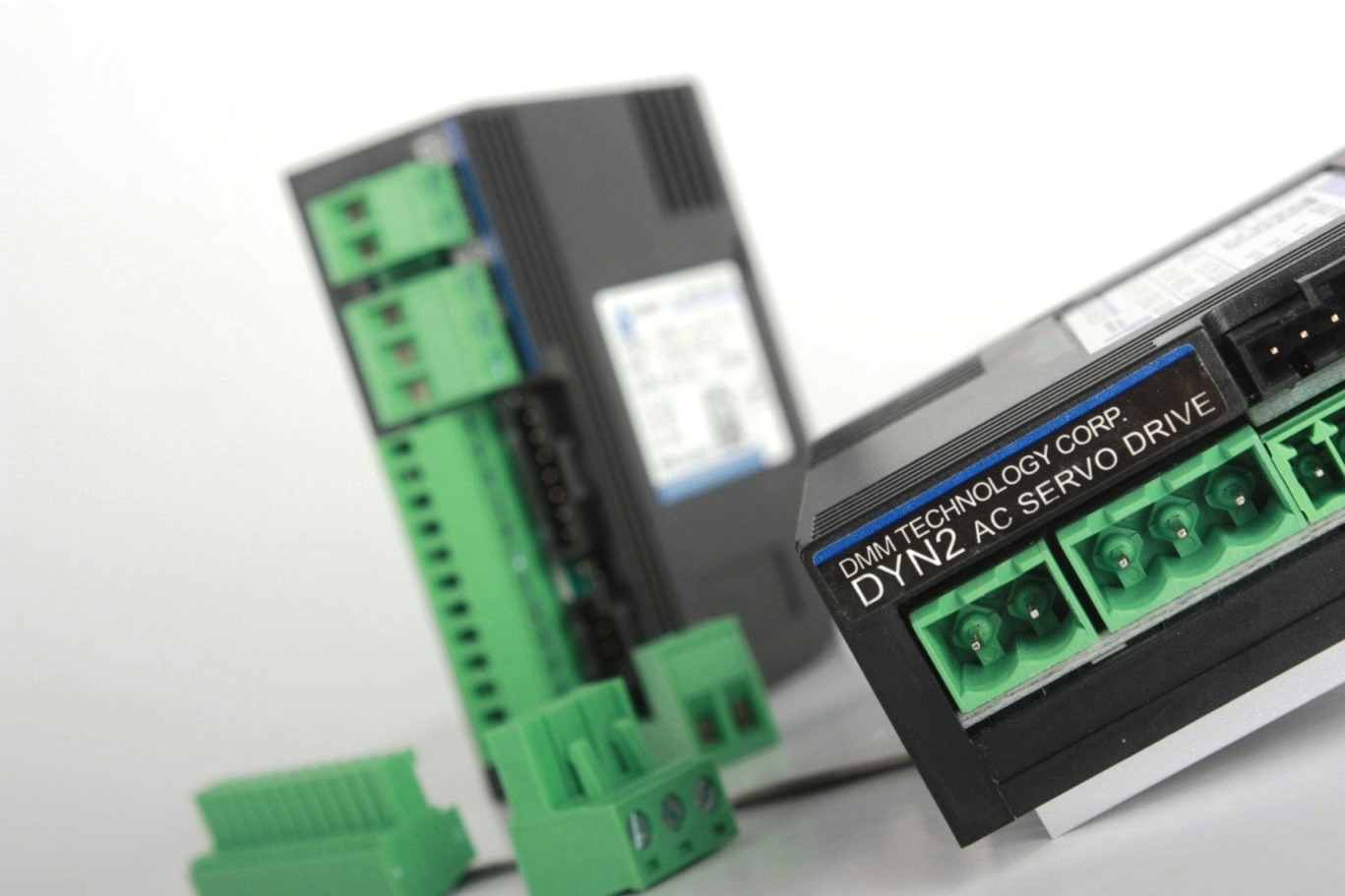

DYN2-TLA6S-00 - AC Servo Drive

Next Generation Low Voltage servo drive for universal applications. Higher resolution encoder feedback, increased speed and larger power capacity to meet demanding requirements.

Industry standard Pulse/Analog interface with optional easy to use Serial RS232 command allows flexible integration. For every low capacity servo application.

Request for quotation

Features

Max. Output Current [Arms] 20 A
Motors range power 200-750W
Low Voltage +60VDC Operation [ Min. +24VDC Max. +75VDC ]
Position, Velocity, Torque servo modes
4-wire high speed serial encoder bus, with 8-bit security code for most reliable position feedback
16-bit (65,536ppr) resolution absolute encoder
General Purpose Pulse/Analog Command
Opto-isolated 25kHz PWM sinusoidal amplifier
Serial RS232 [UART,SPI] Point to Point, S-Curve, Linear & Circular Coordinated Motion. Absolute encoder position feedback. Absolute/Incremental modes.
