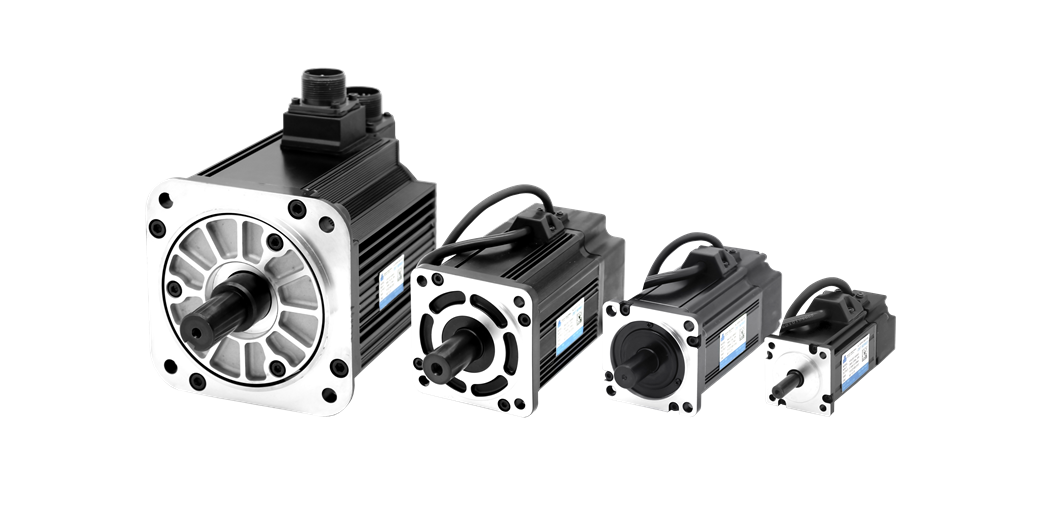

DHT and DST series servo motors are available in both medium inertia for high rigidity, high load applications and
low inertia for faster response and higher speeds.
AC servo motors are available in both low voltage (60V) and high voltage (200V) class for DYN2 Servo Drive and DYN4 Servo Drive pair respectively. High speed serial 16-bit absolute
encoder.

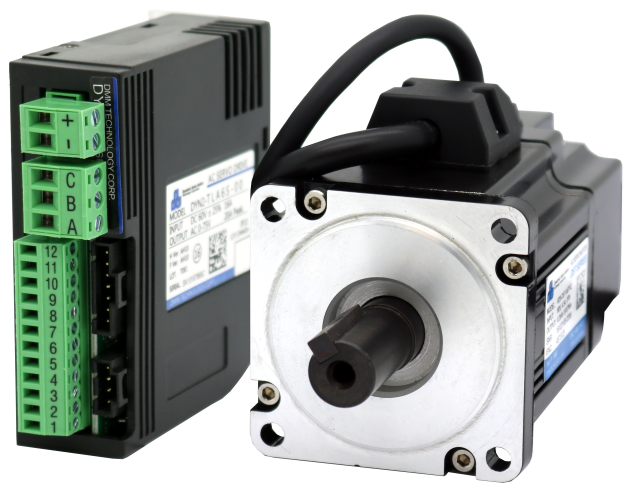

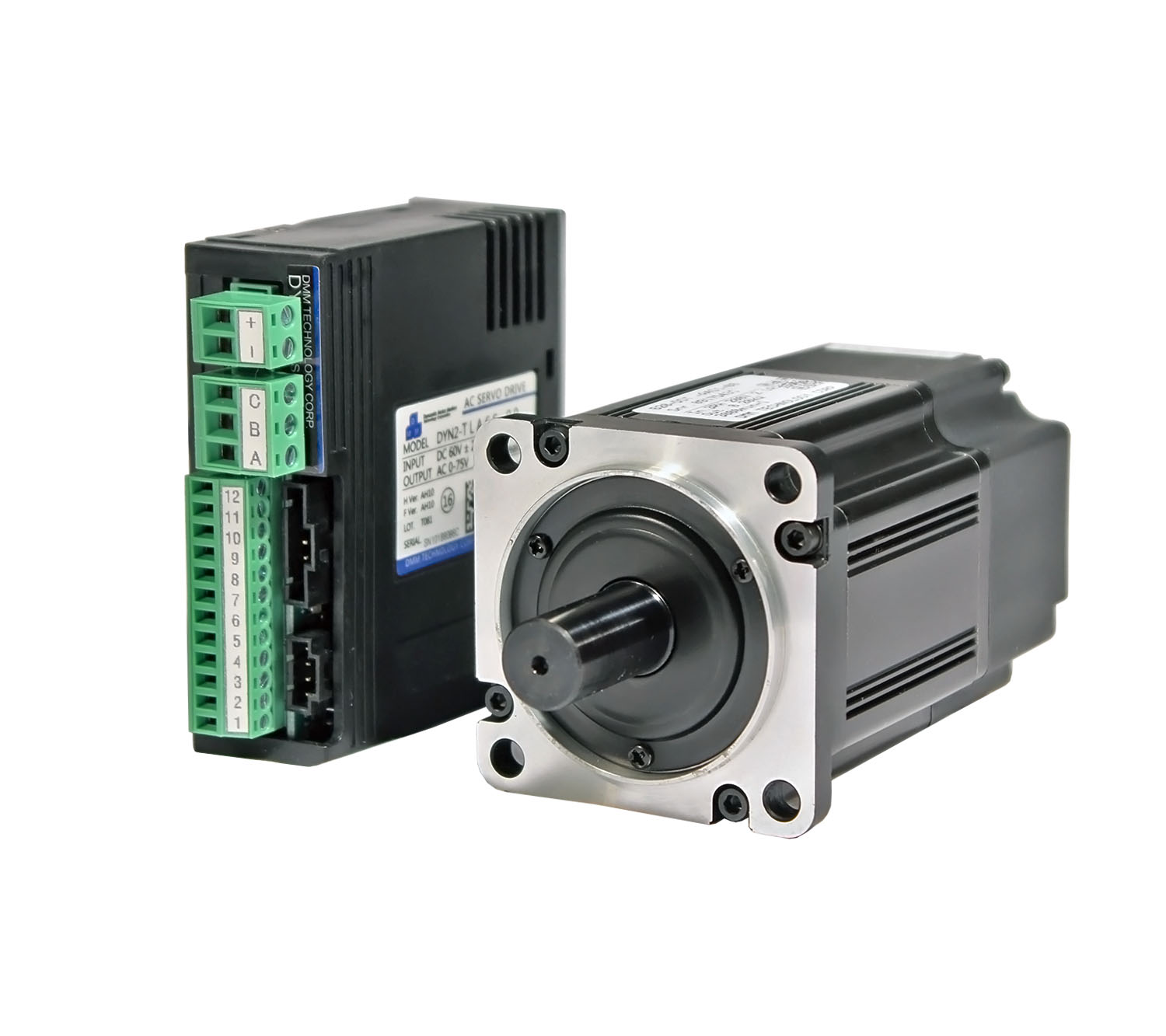

MOTORS FOR DYN2 SERIES
Motor Model
86L-DHT-A6TD* - Medium Inertia
86M-DHT-A6MK* - Medium Inertia
405-DST-A6TS* - Medium Inertia
410-DST-A6TS* - Medium Inertia
620-DST-A6TK* - Medium Inertia
640-DST-A6TK* - Medium Inertia
Frame Size
86 mm
86 mm
40 mm
40 mm
60 mm
60 mm
Rated Power
0.22 kW
0.75 kW
0.05 kW
0.10 kW
0.20 kW
0.40 kW
Voltage
60 V
150 V
60 V
60 V
60 V
60 V
Rated Speed
3000 Rpm
3000 Rpm
3000 Rpm
3000 Rpm
3000 Rpm
3000 Rpm
Brake
See *
See *
See *
See *
See *
See *
* note
1=Without Brake
B=With Brake
MOTORS FOR DYN4 SERIES
Motor Model
86M-DHT-A6MK* - Medium Inertia
405-DST-A6HS* - Low Inertia
410-DST-A6HS* - Low Inertia
620-DST-A6HS* - Low Inertia
640-DST-A6HS* - Low Inertia
880-DST-A6HK* - Low Inertia
11A-DST-A6HK* - Low Inertia
115-DST-A6HS* - Low Inertia
120-DST-A6HS* - Medium Inertia
Frame Size
86 mm
40 mm
40 mm
60 mm
60 mm
80 mm
130 mm
130 mm
130 mm
Rated Power
0.75 kW
0.05 kW
0.10 kW
0.20 kW
0.40 kW
0.75 kW
1.00 kW
1.30 kW
1.80 kW
Voltage
150 V
200 V
200 V
200 V
200 V
200 V
200 V
200 V
200 V
Rated Speed
3000 Rpm
3000 Rpm
3000 Rpm
3000 Rpm
3000 Rpm
3000 Rpm
1500 Rpm
1500 Rpm
1500 Rpm
Brake
See *
See *
See *
See *
See *
See *
See *
See *
See *
* note
1=Without Brake
B=With Brake
